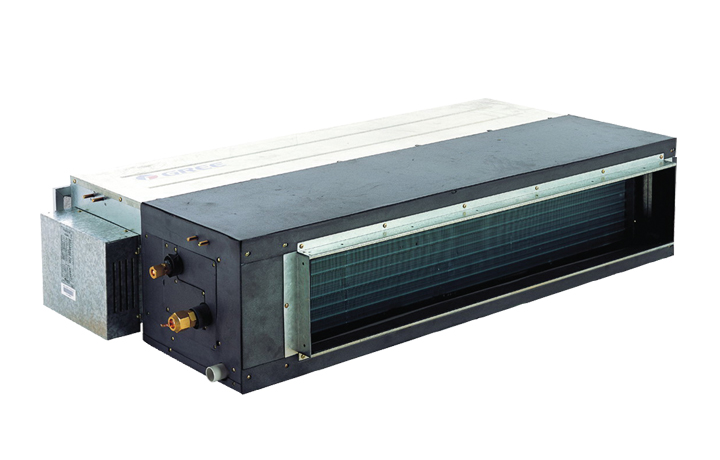

Multi-VRF-Kanalgeräte High Pressure
| GMV-ND056PHS | GMV-ND071PHS | GMV-ND090PHS | GMV-ND112PHS | GMV-ND140PHS | GMV-ND160PHS | GMV-ND280PHA | |
|---|---|---|---|---|---|---|---|
| Kälteleistung | 5,60 kW | 7,10 kW | 9 kW | 11,20 kW | 14 kW | 16 kW | 28 kW |
| Heizleistung WP | 6,30 kW | 8 kW | 10 kW | 12,50 kW | 16 kW | 18 kW | 31 kW |
| Umluftmenge innen ST3 | 1.000 m³/h | 1.100 m³/h | 1.700 m³/h | 1.700 m³/h | 2.000 m³/h | 3.100 m³/h | 4.400 m³/h |
| Ext. statische Pressung | 100 Pa | 100 Pa | 100 Pa | 100 Pa | 100 Pa | 100 Pa | 200 Pa |
| Kältemittelart | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| Spannungsversorgung | 230V/1Ph/50Hz | 230V/1Ph/50Hz | 230V/1Ph/50Hz | 230V/1Ph/50Hz | 230V/1Ph/50Hz | 230V/1Ph/50Hz | 230V/1Ph/50Hz |
| Energieeffizienzklasse | A | A | A | A | A | A | A |
| Schalldruck innen ST1 | 36 dB(A) | 37 dB(A) | 42 dB(A) | 42 dB(A) | 44 dB(A) | — | — |
| Schalldruck innen ST3 | 44 dB(A) | 45 dB(A) | 46 dB(A) | 46 dB(A) | 48 dB(A) | 55 dB(A) | 55 dB(A) |
| Einspritzleitung mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Saugleitung mm | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm | 19 mm | 22 mm |
| Breite | 1.270 mm | 1.270 mm | 1.230 mm | 1.230 mm | 1.230 mm | 1.340 mm | 1.690 mm |
| Tiefe | 560 mm | 560 mm | 775 mm | 775 mm | 775 mm | 750 mm | 870 mm |
| Höhe | 270 mm | 270 mm | 290 mm | 290 mm | 290 mm | 350 mm | 450 mm |
| Gewicht | 35 kg | 35 kg | 47 kg | 48 kg | 49 kg | 60 kg | 105 kg |
